C section post cover with flat slat security fence

C section post cover with flat slat security fence

Product Item：300059

Brand Name：Chiefence

Certification：ISO/Q195/HR2/BS-S185/ASTM A285M GR.B/SGS,CE/BS EN10244-2:2009 CLASS-D

Model Number：300059

Materials：Q195 or Q235

Type：high security fence

Treatment：Per-Galvanized with powder coating colors, Like green, yellow, black,

Color：Green RAL 6005 , White RAL 9010 , Black RAL 9005， Grey RAL 7021 , Other colours are available on request

Warranty：10 years

Market：South Africa, Botswana, Zimbabwe, Zambia, Namibia, Tanzania, Nigeria, Congo, Ghana, Turkey, Algeria, Uganda, Mozambique

Payment Terms：TT,LC, Cash.

Packaging Details：1.Panel-Metal Pallet wrapped with cardboard plate and then wrapped with plastic film 2. Post- Wrapped with PP bags,then put on pallet ,wrapped with plastic film 3. Accessories- Carton 4. Customized pa

Delivery Time：7-15 days/20' container, 10-25 days /40’container

Description

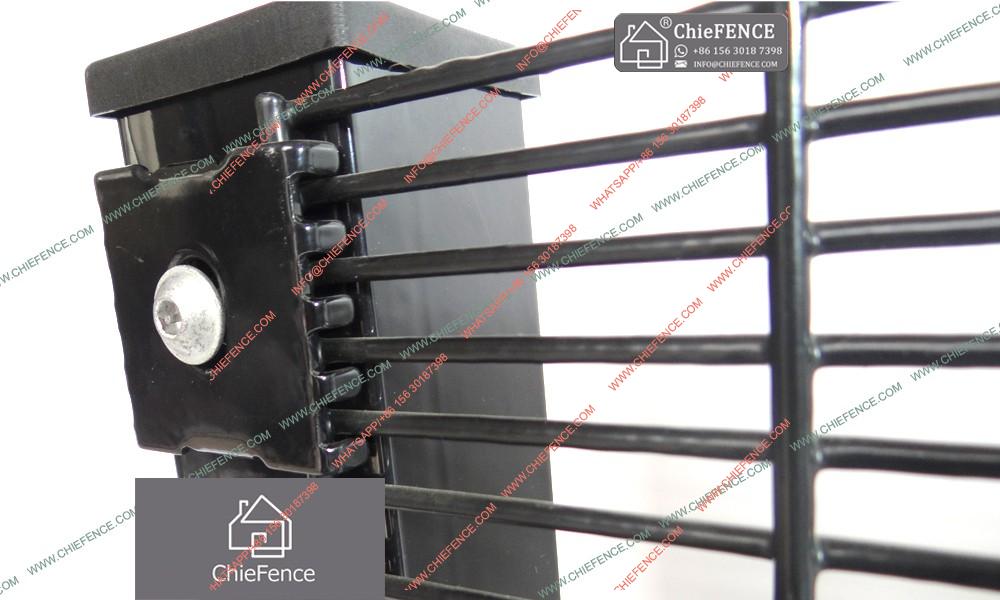

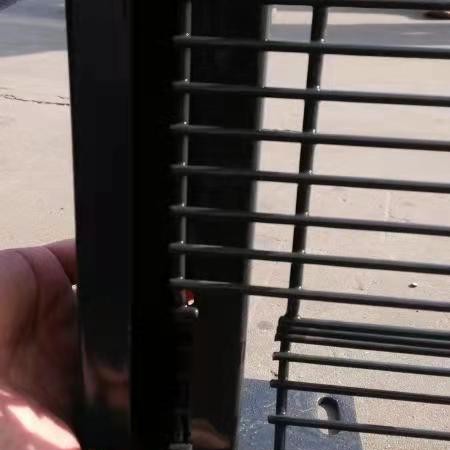

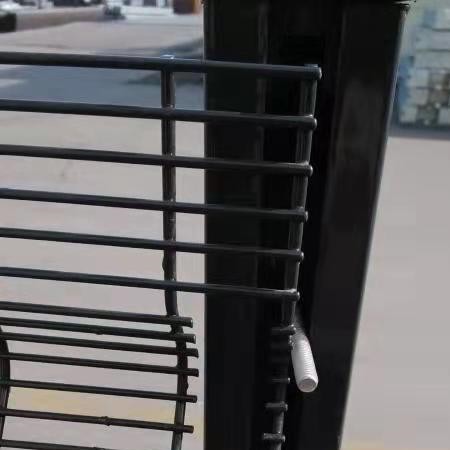

C section post cover with flat security fence

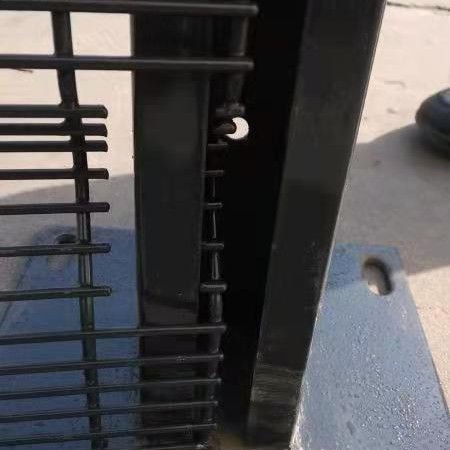

C section post is a post which is having thinner spacing, which is cover with

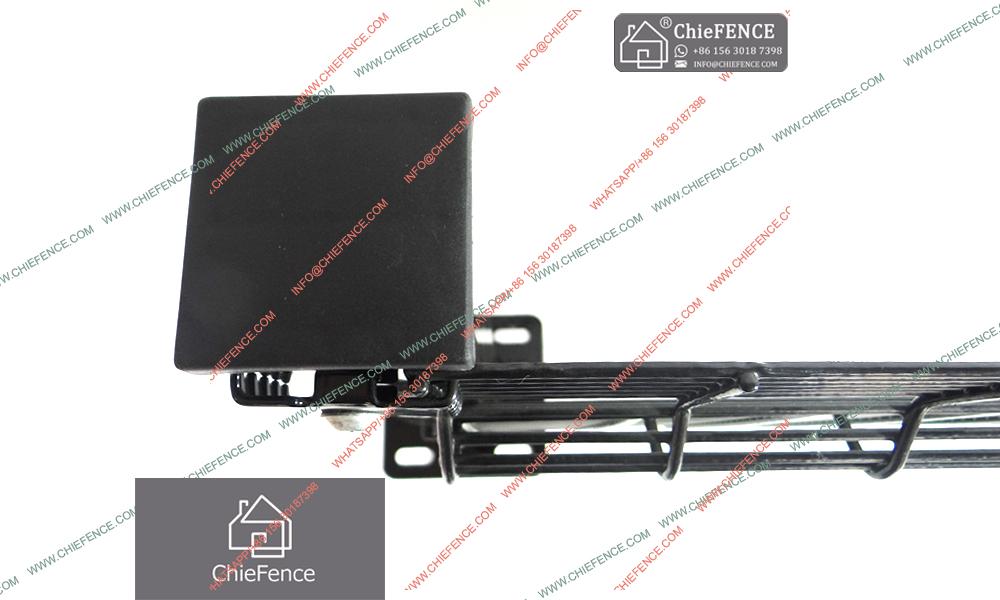

C section post is a post which is having thinner spacing, which is covered with a flat bar on the top with a security fence panel, from the outside, it is looking like a whole together, it rises up the stability,

The unique design is acceptable by many clients, they like the beautiful fence with laconic.

The C section size is 60x80mm, with cover 60mm flat bar,

it is same installation way with others, it is very easy to work,

and more choices for the clients,

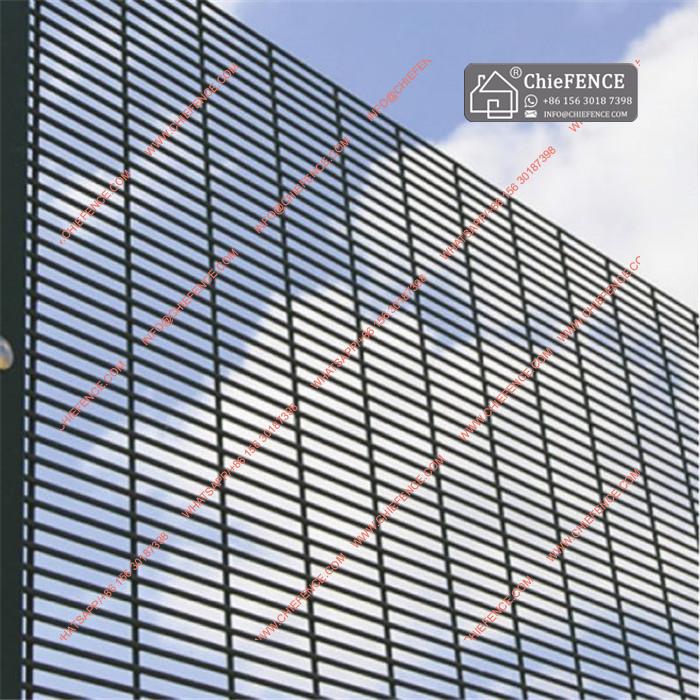

Affordable and durable high security fence system guaranteed for 20 years. Tight mesh spacing provides anti-climbing, anti-cutting and anti-ligature functions. Available options such as reinforced v-bends, razor wire and break-resistant hardware make Securite the ultimate safety solution for a variety of applications.

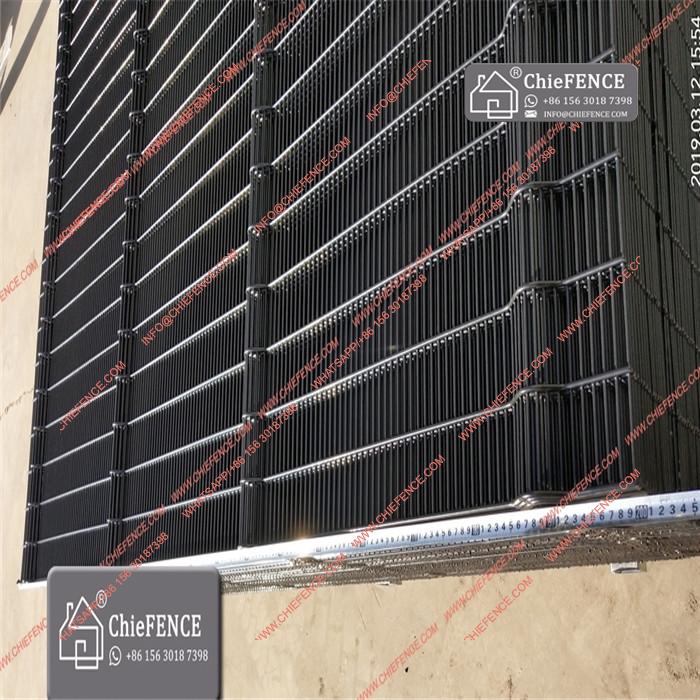

welded mesh fence panel. Mesh size 1/2"x3" (12mm x76mm). Finishes available are Galvanized or Galvanized Polyester Powder Coat Coated in various colors. This system can be used both horizontally (Securite D) and vertically (Securite M).

Solder wire function:

• Ideal for boundary protection.

• Anti-cutting and anti-crime.

• Galvanized after welding, the panel does not fray or fray.

Even if disconnected, it loses its structural integrity.

• Can be buried and/or electrified.

• Available in two gauges, 8ga and 10.5ga. Heights

Up to 12 feet.

• Available in galvanized or PVC coated version.

Types of stanchions: C-stanchions, circular stanchions, square stanchions, fence stanchions with V-bracket.

Post C: 62mm x 83mm x 3mm

Round Post: Outer Diameter: 80mm x 3mm

Rectangular or Square Posts: 60mm x 80mm x 3mm; 60mm x 120mm x 3mm

Strut length: Standard: 2.3 mm at 4 m. Or custom size.

Material: square steel tube, round steel tube, C-shaped steel

Finish: Hot-dip galvanizing, PVC coating

Polyester coating color: dark green, black, etc. The posts are polyester powder coated with a galvanized substrate to Euro 10147 (minimum 60 microns).

why we choose chiefence.

1. Quickly delivery, 25days for 1x20'containers (1000meters)

2. Quality control, test during all production part line,

wire, welded, packing, loading,

3. Good packing, strong pallet with full cover with waterproof Tarp, protect the products.

4. Professional, confirm all the detail with clients, make sure the products are total confirm the request,

5. Warranty: 10 years,
