Description

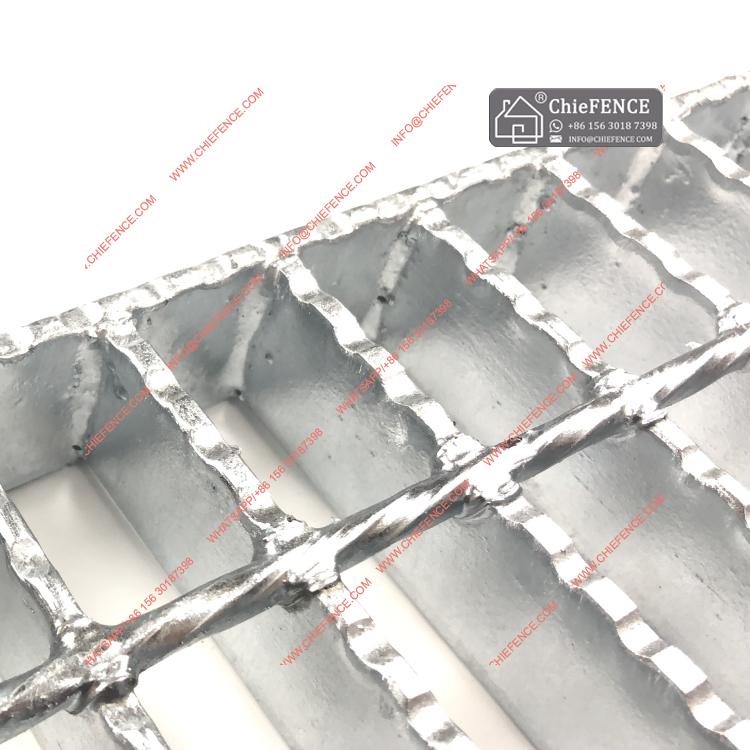

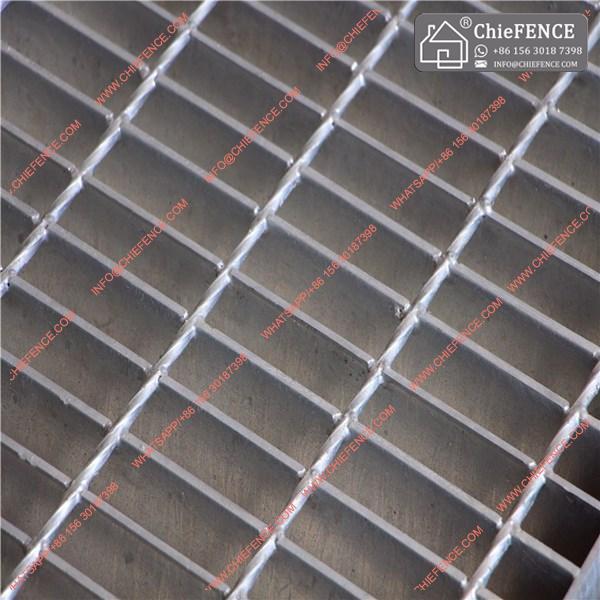

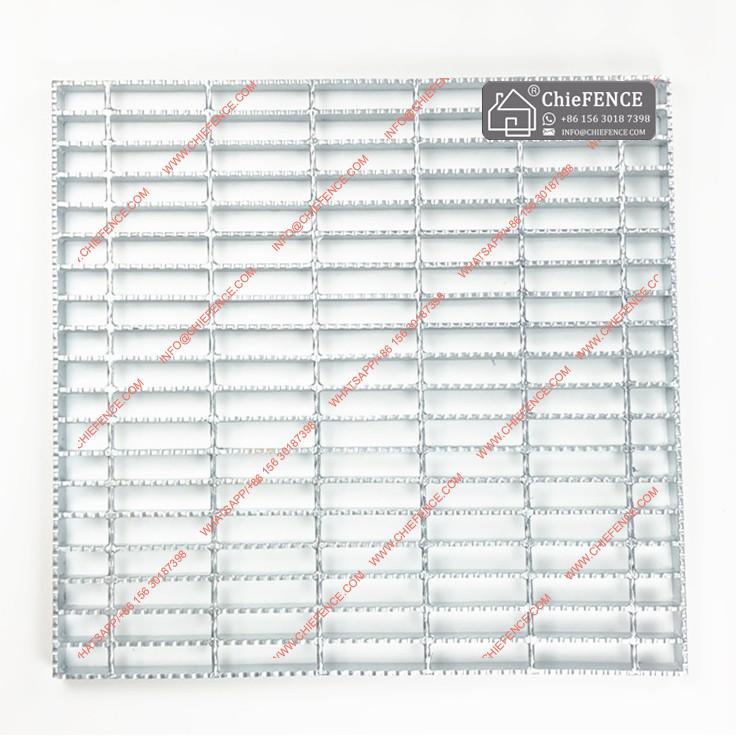

chiefence Welded Steel Grating
ChieFence Welded Steel Grating is one of the most commonly used steel grating, also known as open steel bar gratings. The welded steel grating is made of carbon steel or stainless steel. Welded steel grating has the characteristics of non-slip surface, corrosion resistance, good drainage performance, high strength and strong bearing capacity. Therefore, it is widely used in walkways, stairs, fence, shelves, ceilings and floors in many places. The steel Grating is available in different bearing spacing and thickness according to application and load requirements. Choose smooth top or non-slip serrations.
The steel grating is made up of load flat steel and cross bars arranged in a certain interval of warp and weft, and welded by a high-voltage resistance welding machine to form an original plate. Then, it is processed into the finished product required by the customer through the processes of cutting, incision, opening, edging, etc
Specifications of ChieFence welded steel grating
Material Standard
ASTM A36, A1011, A569, Q235, S275JR, Stainless steel 304/316,
Mild steel & Low carbon steel, etc
Grating Style

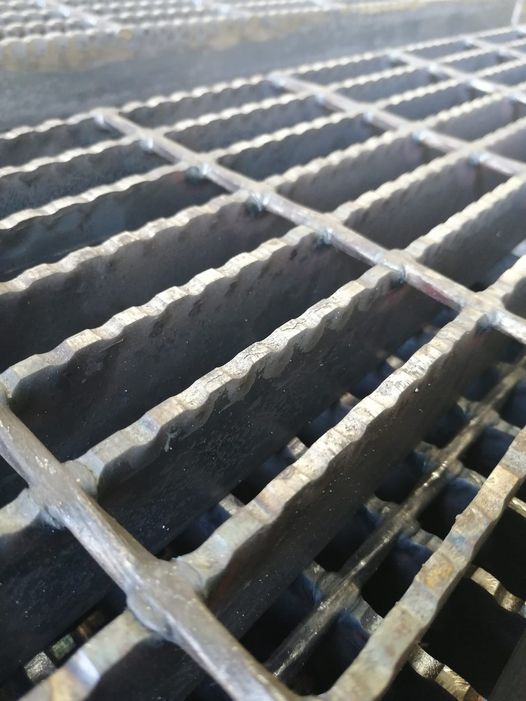

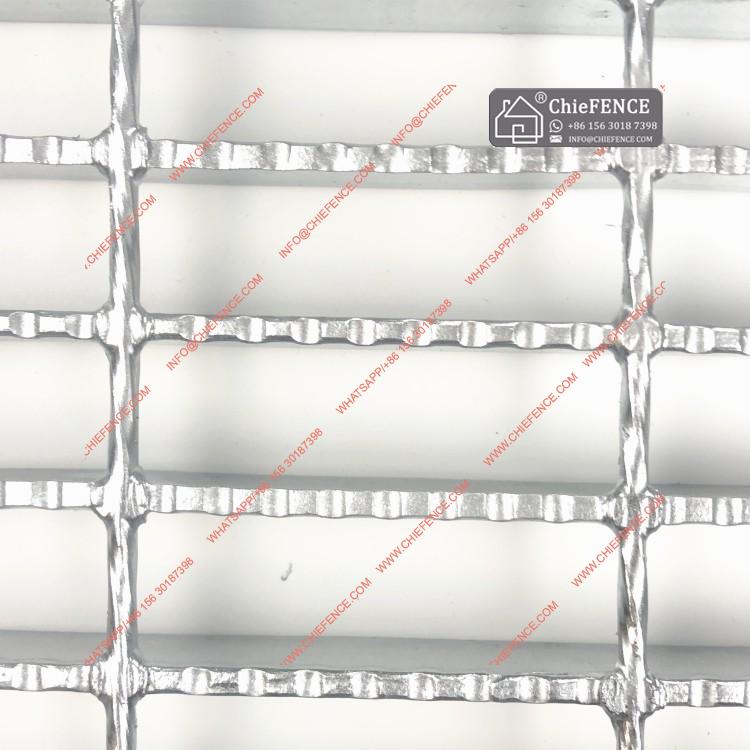

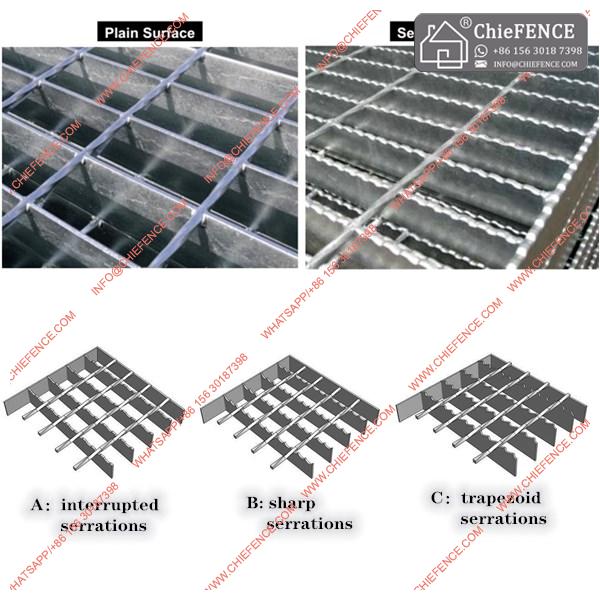

Plain / Smooth, Serrated / Teeth, I bar, Serrated I bar
Bearing Bar

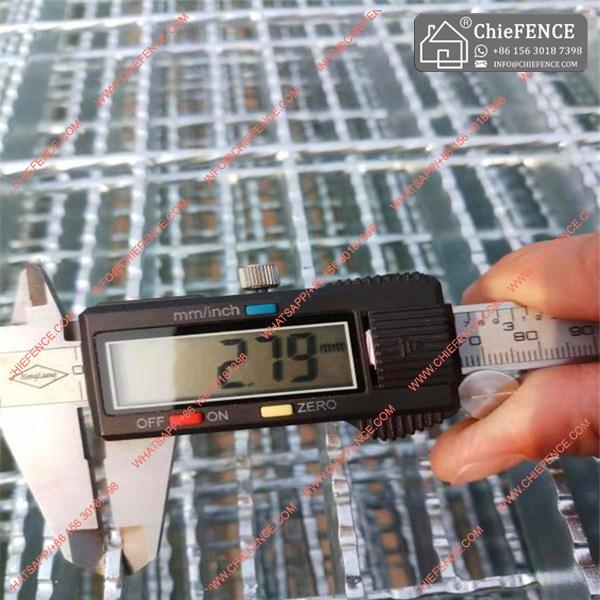

25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10…..100 x10mm etc;
I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc
Bearing Bar centers
30mm/40mm/60mm, etc
Cross Bar

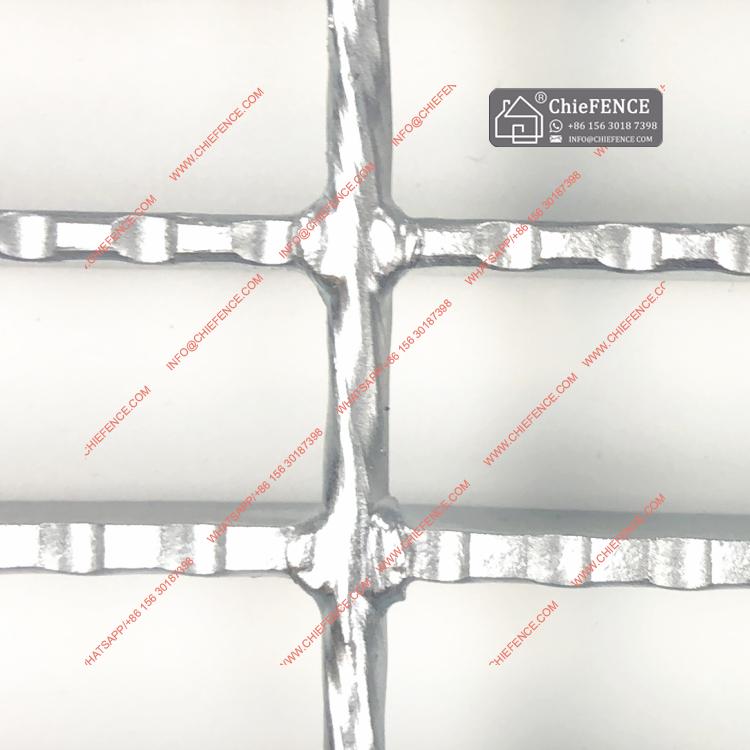

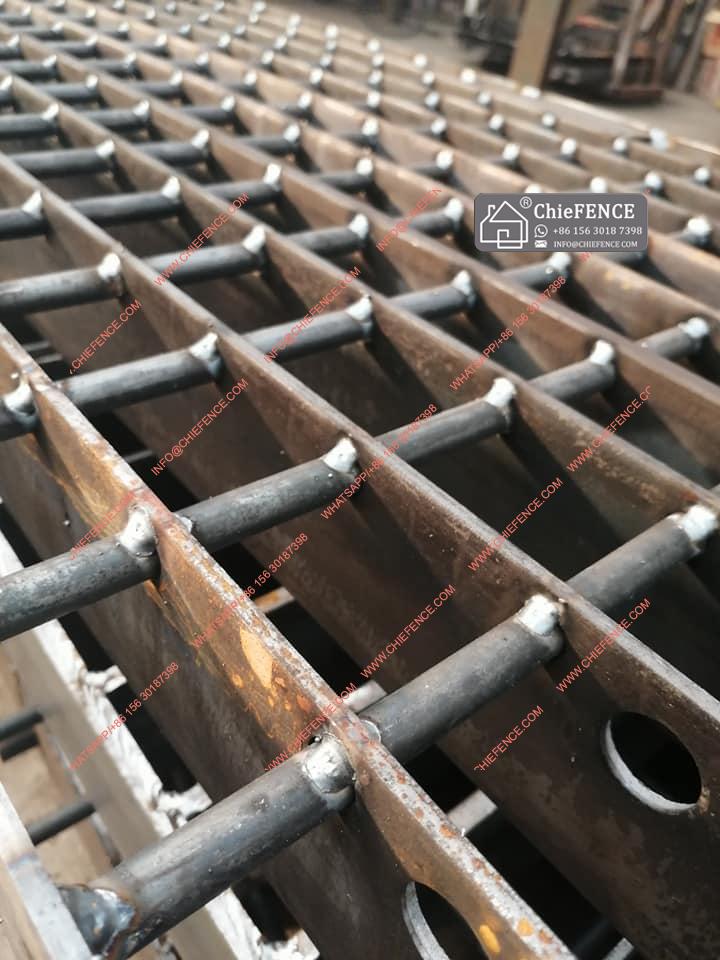

Round, twisted square, square or hexagonal
Cross Bar size
5*5mm, 6*6mm, 8*8mm, etc
Cross Bar centers
50mm/100mm,etc
