Description
Rigid fence with H posts/peach post fence+ plates – length 10 meters
These unique H-posts ensure the durability of narrow fences, even in sensitive environments such as coastal areas and around swimming pools. Very durable and especially suitable for installation with concealment systems and bases.
TECHNICAL CHARACTERISTICS :
Composition: Electro-galvanized galvanized steel
Coating color: RAL 6005 dark green
Rigid welded panel:
Mesh: 200 x 55 mm
Length: 200cm
Thread: 4mm
Material: Plastic coated galvanized steel
Dimensions: 70x100mm,50*700*1.2mm
Peach type fence base: 140*140*5 150*150*5
Post center distance for 2m panels (in 4mm wire): 2.04m
Center distance between posts for 2.5m panels (in 5mm wire): 2.54m
Galvanized or powder-coated steel is PVC coated to prevent corrosion and extend its life.
Rigid panels are integrated with stiffeners to increase rigidity and sturdiness.
This type of post can be mounted with Nylofor 3D, 3D Pro, 3D Pro XL, 3D Super, 2D, 2D Super panels
The base plate can be screwed into the post
Fixation of H post/ peach post
Embedded way. The peach post can be embedded into the earth
Concrete-in way , Place the peach post into the hole with the concrete
Bolt-down way, fasten the peach post onto the ground with bolts and nuts.
Peach Type Fence Post for V Curve Mesh Panel
Peach type fence posts have properties such as corrosion resistance, aging resistance, sunlight resistance and weather resistance.
Peach type fence posts, as the name suggests, are similar in shape to peach. Fishing poles are made from low carbon steel or hot rolled steel pipe and are cold rolled into fishing poles. The outer surface of the fishing pole is oval, and the inner sheet is bent outward after connection to form a U-shaped hook. There are several notches on both sides of the fishing pole for easy installation of the panels. metal fence. The size of the notch should be based on the mesh size of the fence panel. In addition, the hook part has a tight structure, which prevents the theft of the fishing pole and the fence panel.

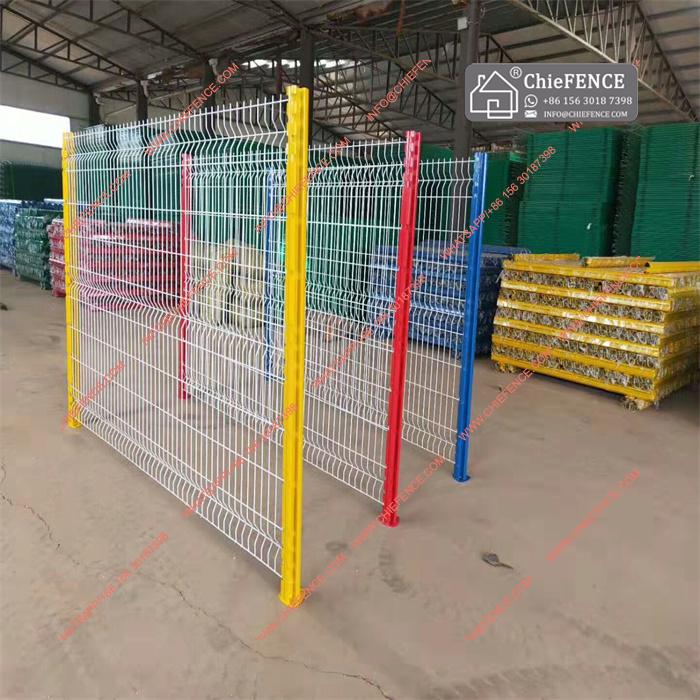

peach type fence posts for v curve wire fence panels/peach type posts used by lattice fence suppliers
peach, also known as "easy install post", are powder-coated hot-dip galvanized steel pieces. It is mainly used for welded mesh panels with bends. It's very easy to install. Simply hook the mesh panel over the upright.
The electrostatic spray surface provides excellent self-cleaning performance for fence products and makes them look as smooth as new after being washed in the rain and sprayed with a water gun.
Excellent decoration and rich colors can meet different customers' individual requirements for fence products.
The excellent flexibility, rigidity and flexibility of steel pipes improve the impact performance of fence products.
It is not easy to rust, fade, crack, chalk, age or fall off, and the colors are durable and bright.
Significantly reduce product maintenance and renewal costs.
All of our fencing systems are polyester powder coated to BS6497. The panel undergoes an alkaline and acid cleaning process before applying a powder coating of as low as 100mm microns.
Using on
Railroad security fence.
Airport security fence.
Residential security fence.
Prison security fence.
Garden fence.
Factory security barrier.
Agricultural land security fence
