Description
chiefence Razor wire fence, concertina razor coils
Razor wire is also called concertina razor wire. Galvanized steel blade is used to wrap the galvanized iron core wire, which is an effective and economical safety barrier. With its high safety features, ChieFence razor wire can prevent most intrusions and dangers that are difficult to break.Together with the Razor wire on the top of other fences, the safety factor can be greatly improved.An important feature of it is low cost. It sells well in the African market and is also a hot product in most countries and regions.

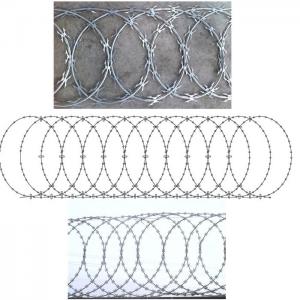

We can provide the concertina razor coils with single coils or crossed spiral coils.
We can produce razor wire in coil loops or straight lines.concertina razor
The types and specifications of blades vary according to customer requirements
Our ChieFence Concertina razor coils are widely used in the military sites for security, prison security, ships to prevent piracy,etc
Types of concertina razor wires:
BTO-10, BTO-12, BTO-18, BTO-22, BTO-28, BTO-30, CBT-65, CBT-60
|
Item |
Blade Style |
Thickness(mm) |
Wire Dia(mm) |
Barb Length(mm) |
Barb Width(mm) |
Barb spacing(mm) |
|
BTO-22 |
 |
0.5±0.05 |
2.5±0.1 |
12±1 |
15±1 |
26±1 |
|
BTO-18 |
 |
0.5±0.05 |
2.5±0.1 |
18±1 |
15±1 |
33±1 |
|
BTO-22 |
 |
0.5±0.05 |
2.5±0.1 |
22±1 |
15±1 |
34±1 |
|
BTO-28 |
 |
0.5±0.05 |
2.5±0.1 |
28±1 |
15±1 |
45±1 |
|
BTO-30 |
 |
0.5±0.05 |
2.5±0.1 |
30±1 |
18±1 |
45±1 |
|
BTO-60 |
 |
0.6±0.05 |
2.5±0.1 |
60±1 |
32±1 |
|
|
BTO-65 |
 |
0.6±0.05 |
2.5±0.1 |
65±1 |
21±1 |
100±2 |
The material of concertina razor wire fence:
1: 40-60g/m2 normal hot dipped galvanized Razor wire
2: 70-270g/m2 zinc coating Razor wire
3: 304/316 grades stainless steel Razor wire

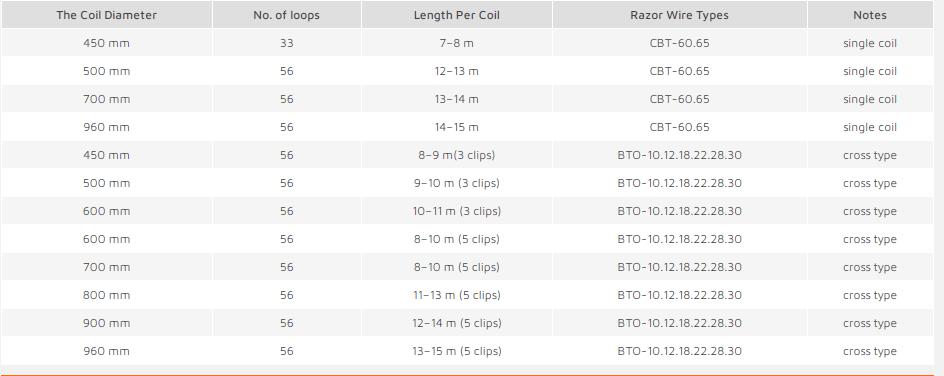

concertina razor Coil diameter of concertina razor coils:
300/450/500/600/700/800/900/950/1000mm
If you have any concertina razor requirement or you need the sample for tenders ,
please feel free to contact us,
Mobile/WhatsApp/Viber/WeChat:+86-13483666613
WEB: www.chiefence.com
EMAIL: tom.wong@chiefence.com
Contact person: Tom
