Description
chiefence Gabion Box, Gabion Basket
ChieFence Gabion Box is a rectangular box shape with multiple twisted hexagonal woven galvanized or PVC coated steel mesh compartment baskets.The compartments are of equal size and consist of inner diaphragms.The compartments are filled with natural stone, and the partitions ensure that the smallest stone moves in the basket.Therefore, even in abnormal situations, it can provide a uniform distribution of stones and increase the strength of the container during filling to help maintain its rectangular shape.
Gabion box (derived from Italian gabbione, meaning "big cage");
derived from Italian gabbia and Latin word cavea, meaning "cage")
is a box or basket filled with rocks, concrete or sand and soil,
In dams or infrastructure construction, cylindrical metal structures are used.
In a military environment, fill or sand gabions are used to protect artillery personnel from enemy attacks.

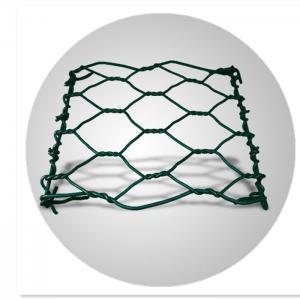

The Gabion Box Wire Netting is a metal wire container made of hexagonal steel wire mesh. The diameter of the steel wire varies with the hexagonal net.
Hexagonal Wire Netting Gabion Box without PVC coating, wire diameter 2.0mm ~ 4.0mm. PVC coated hexagonal wire mesh with an outer diameter of 3.0 ~ 4.0mm.
The steel wire on the edge of the outer frame is a steel wire thicker than the steel wire used for hexagonal wire mesh.
|
Specifications of ChieFence Gabion Box |
|
|
Mesh size |
60mm*80mm, 80mm*100mm, 100mm*120mm |
|
Body wire diameter |
2.0mm/2.7mm |
|
Selvedge wire |
2.4mm/3.4mm |
|
Tie wire diameter |
2.2mm |
|
Mesh technology |
Regular twist or Reverse twist
|
|
Surface treatment |
Heavy duty Galvanized Galfan Coated Galfan coated+ pvc coating
|
